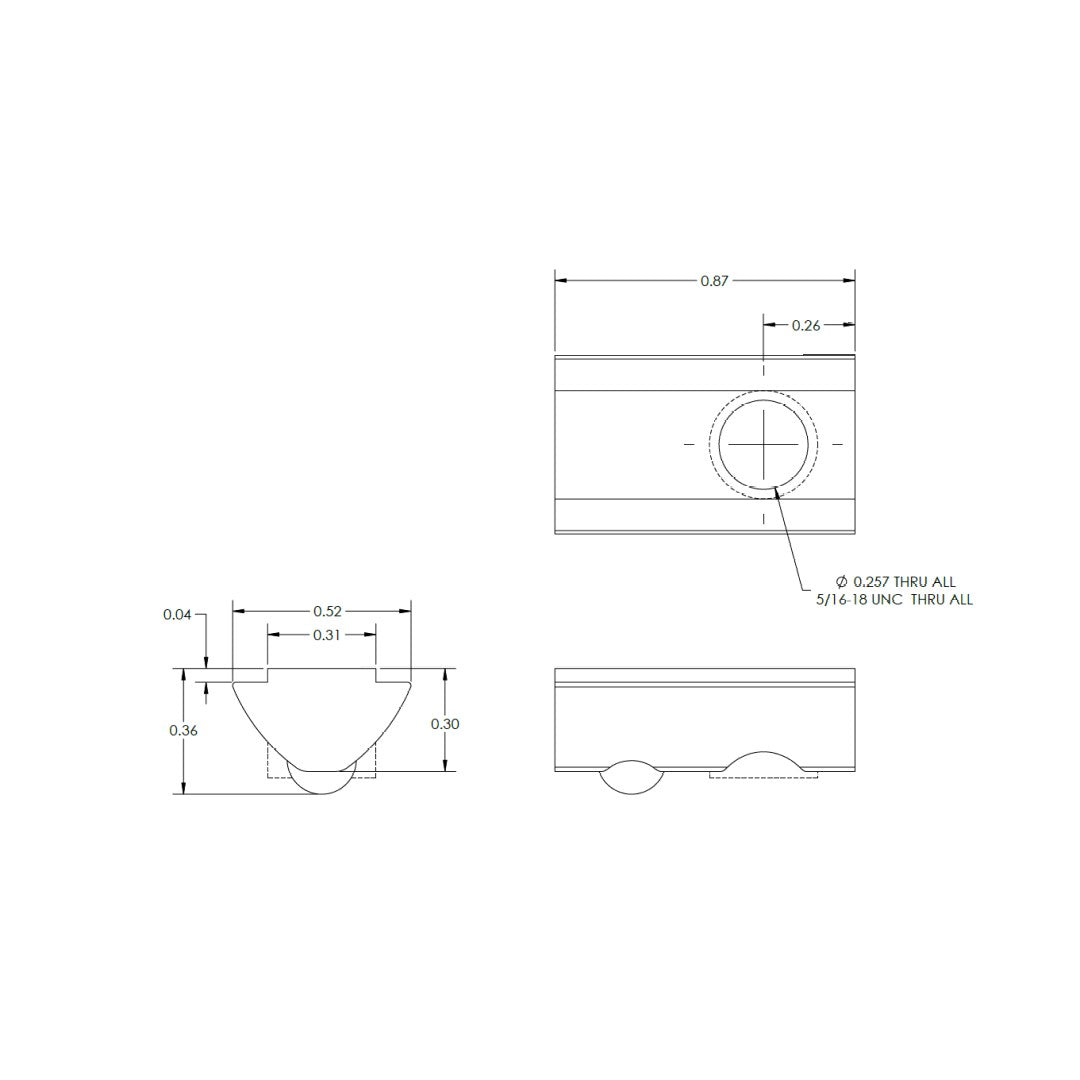

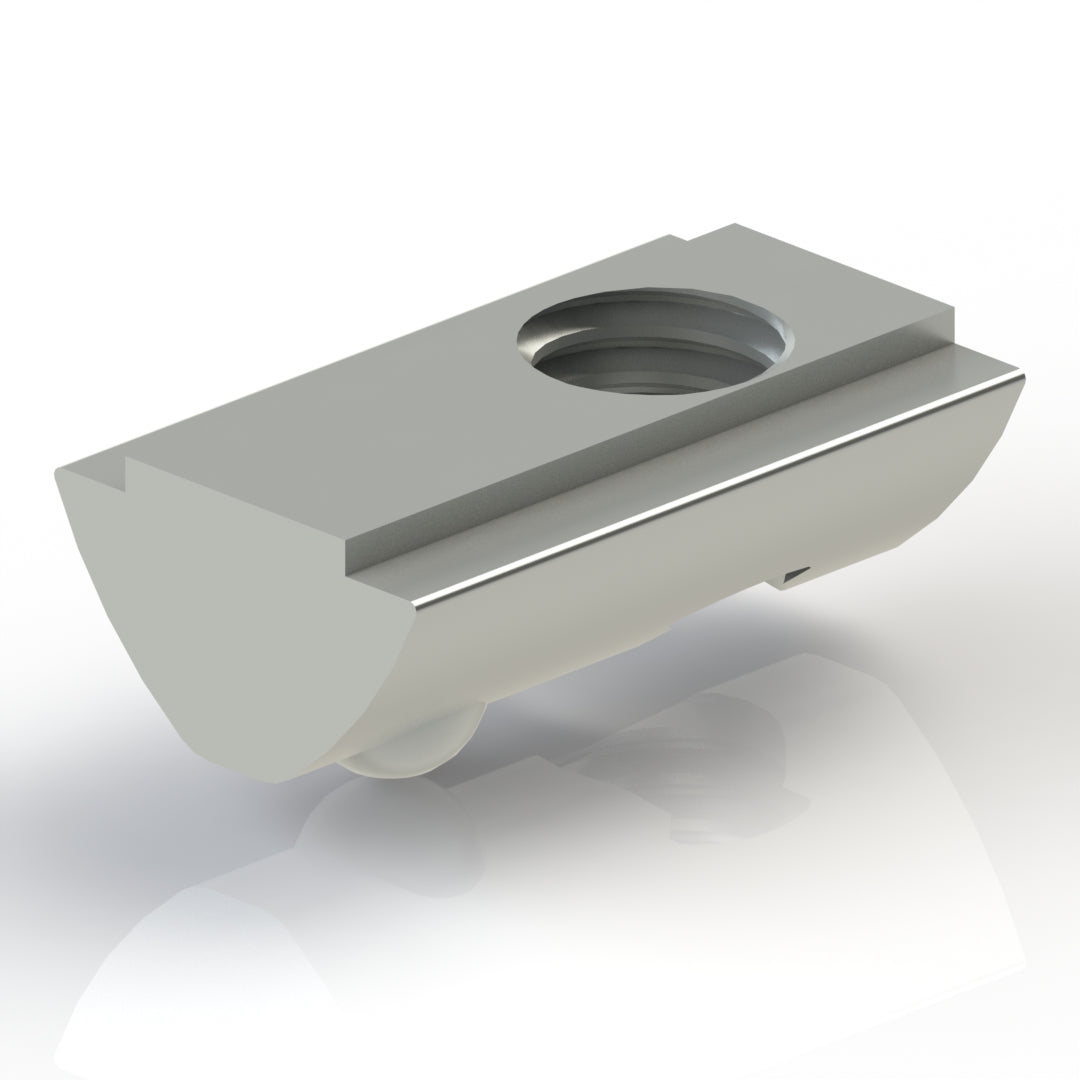

T-Nut; 15 Series; Drop-In; Ball Screw; 0.3125-18

No need to have access to the end of your extrusion to use this t-nut.  This t-nut rolls into the t-slot and holds its position with the spring ball screw.  It's a great option when you want to add a t-nut but the end of your extrusion is blocked.  The ball spring also makes it great for vertical extrusion installations so that the t-nut doesn't drop or lose position.  Provides a secure fastening point anywhere along the slot. Featuring a standard 5/16-18 thread, it is compatible with common brackets and hardware.

Made from zinc plated steel.

Works with most 15 series and 40 series extrusions include RevDelta and 80/20's 15 series extrusions.

Design Files:

• STP
• IGS
• PDF
