Plate; For 19" Electronics Rack; 1U mounting Flat Plate

This 1U flat mounting plate gives you a clean way to mount small equipment inside a 19" rack — including racks you've built yourself from 1.5" T-slot aluminum extrusion. It's a natural fit for a DIY extrusion rack build, where you need a simple, precisely-drilled plate rather than sourcing a full pre-made rack accessory.

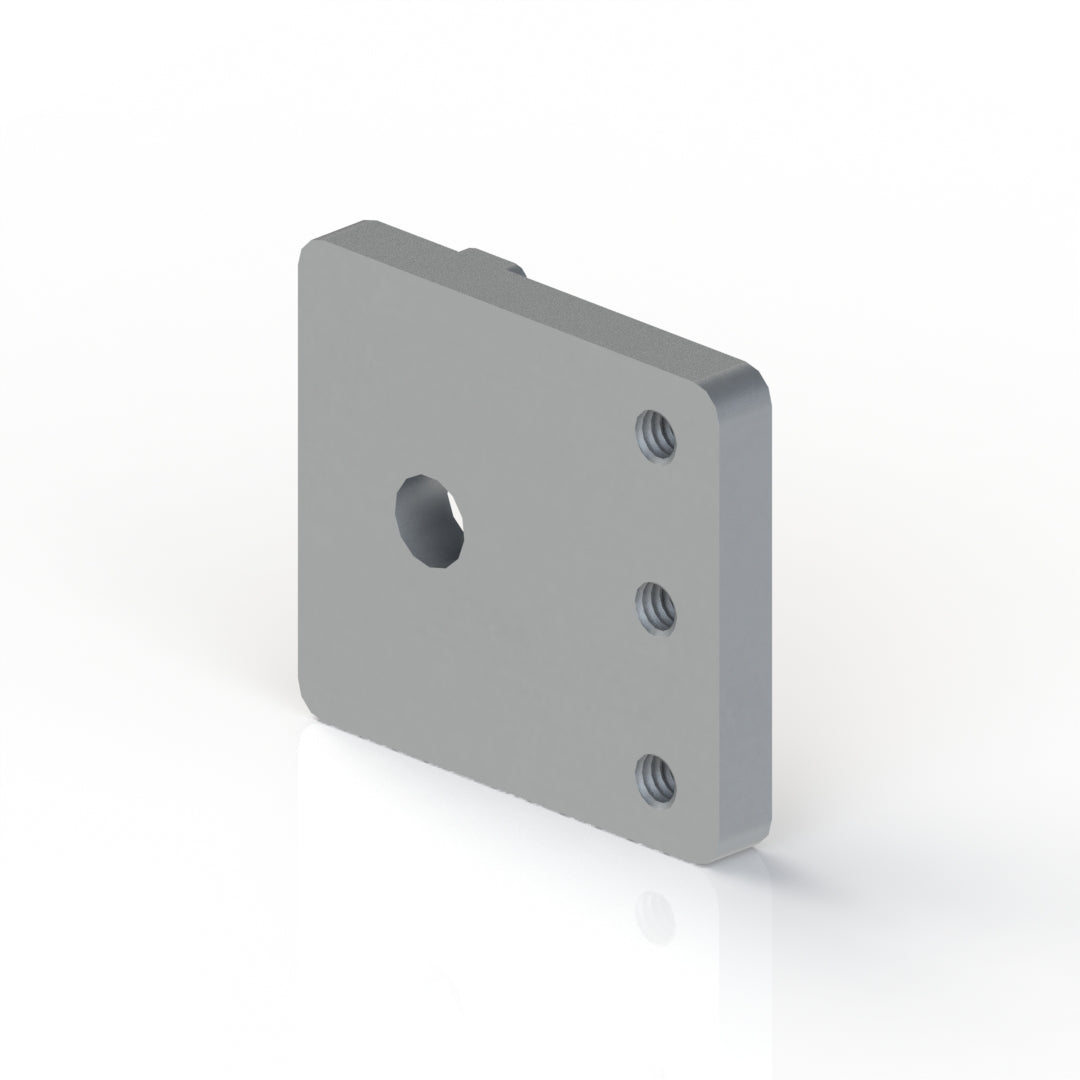

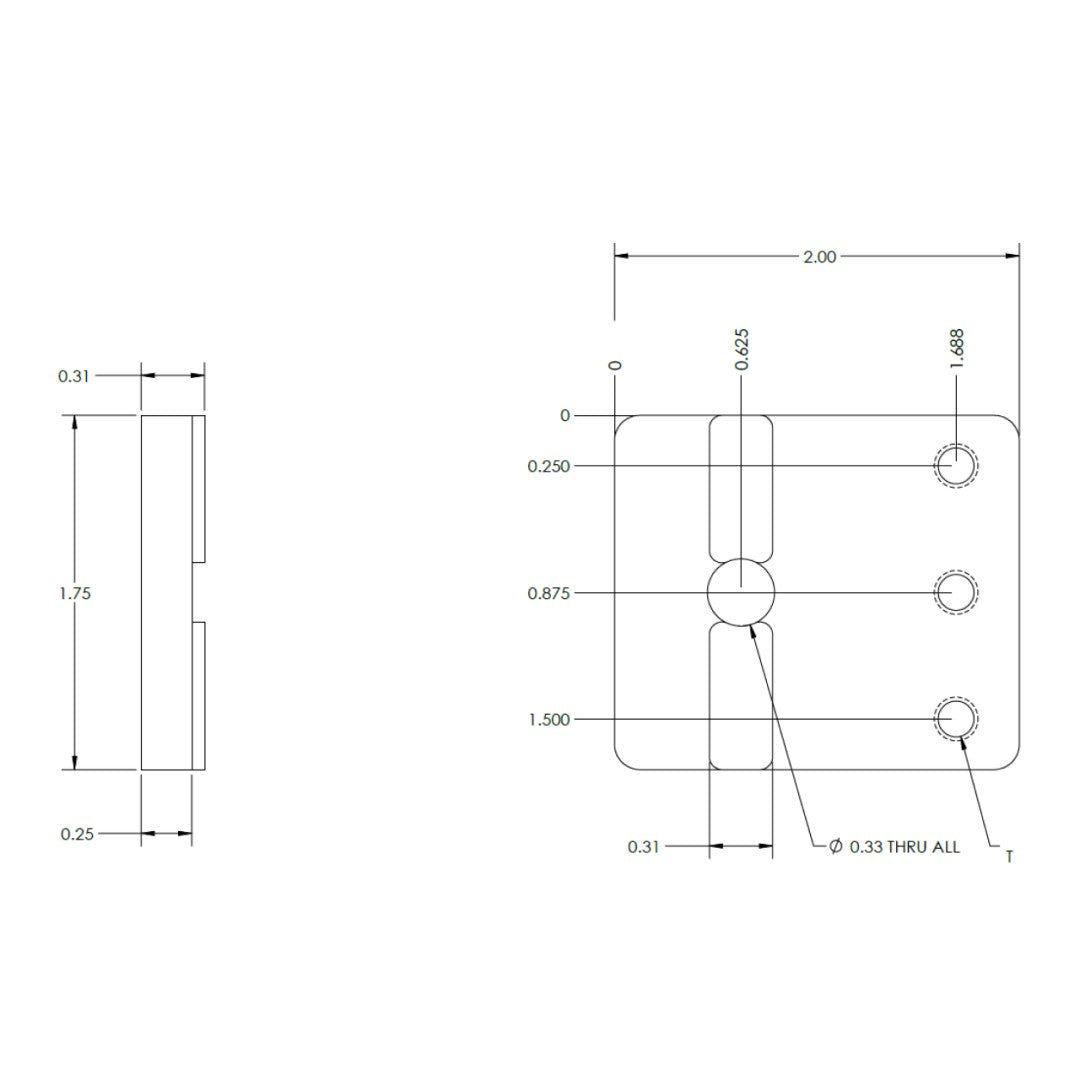

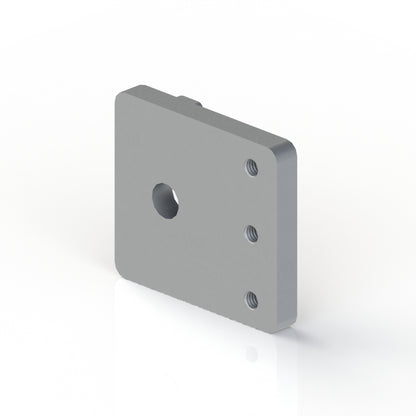

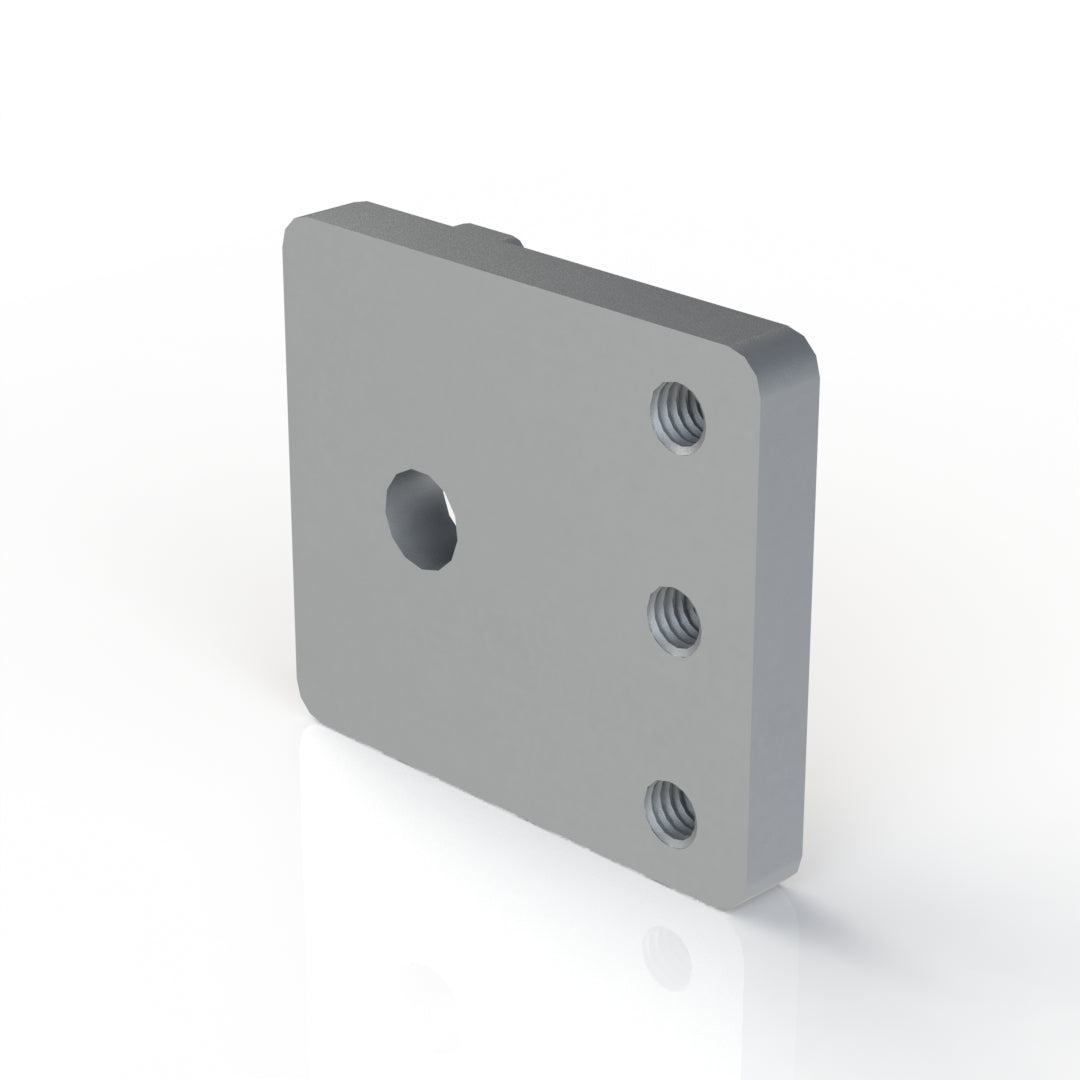

One side has a keyhole-style rack mounting slot that hooks over a standard rack screw or T-slot fastener; the other has three tapped holes for attaching your equipment. Available with 12-24, 10-32, or M6 tapped holes to match whatever hardware your equipment uses.

Machined from 6061-T6 aluminum with a clear anodized finish, and made in Canada.

Design Files:

• STP
• IGS
• PDF
