End Fastener; 15 Series; Stainless Steel

End Fastener; 15 Series; Stainless Steel

900021

$2.10 CAD
$2.10 CAD
Sale Sold out
Estimated Lead time:

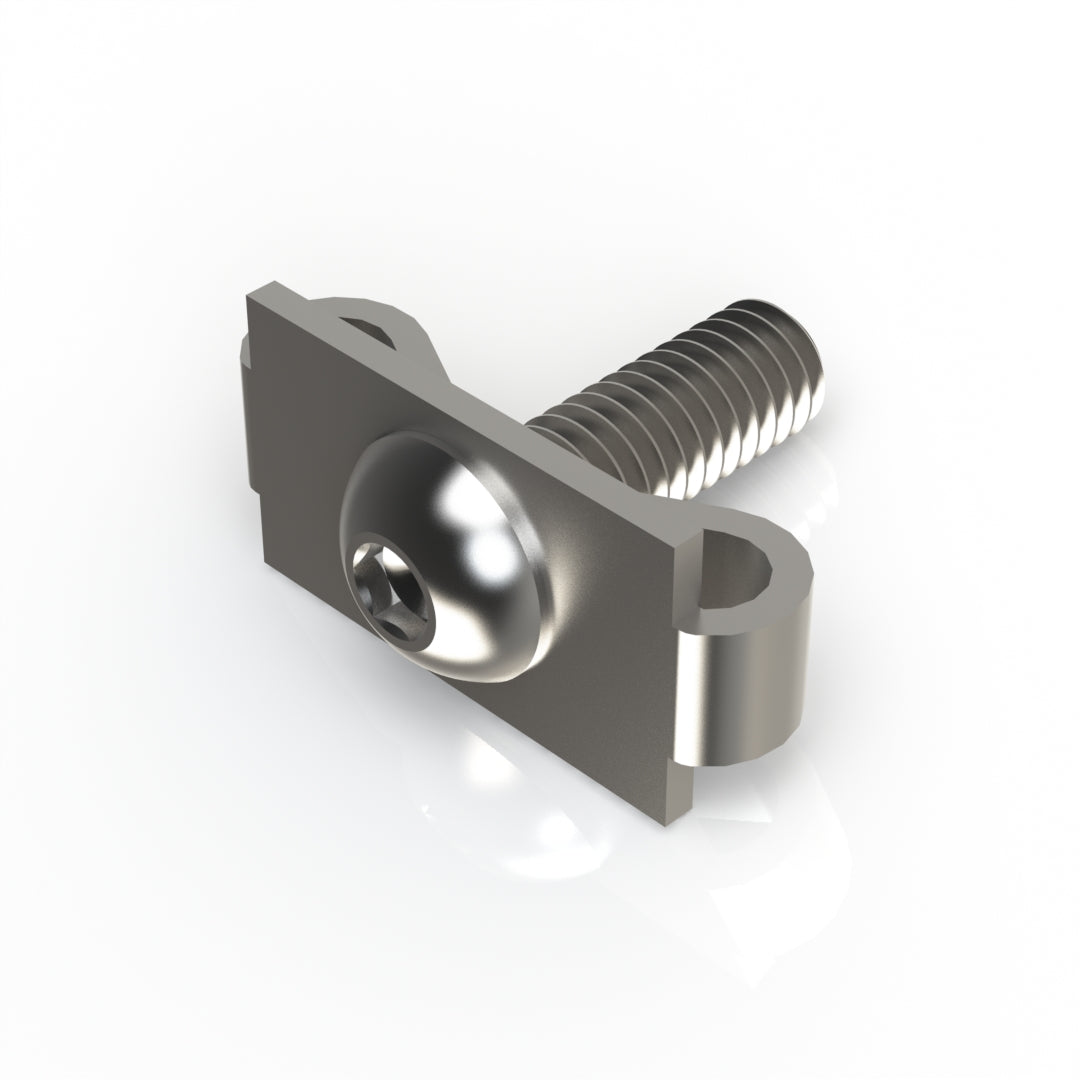

The absolute go-to fastener for any frame.  Join your extrusions together at a perpendicular angle.  The winged clip prevents rotation.  Requires two machining operations:  (i) an access hole in one extrusion and (ii) a 5/16-18 profile tap in the adjoining extrusion.

Works with most 15 series and 40 series extrusions include RevDelta and 80/20's 15 series extrusions.

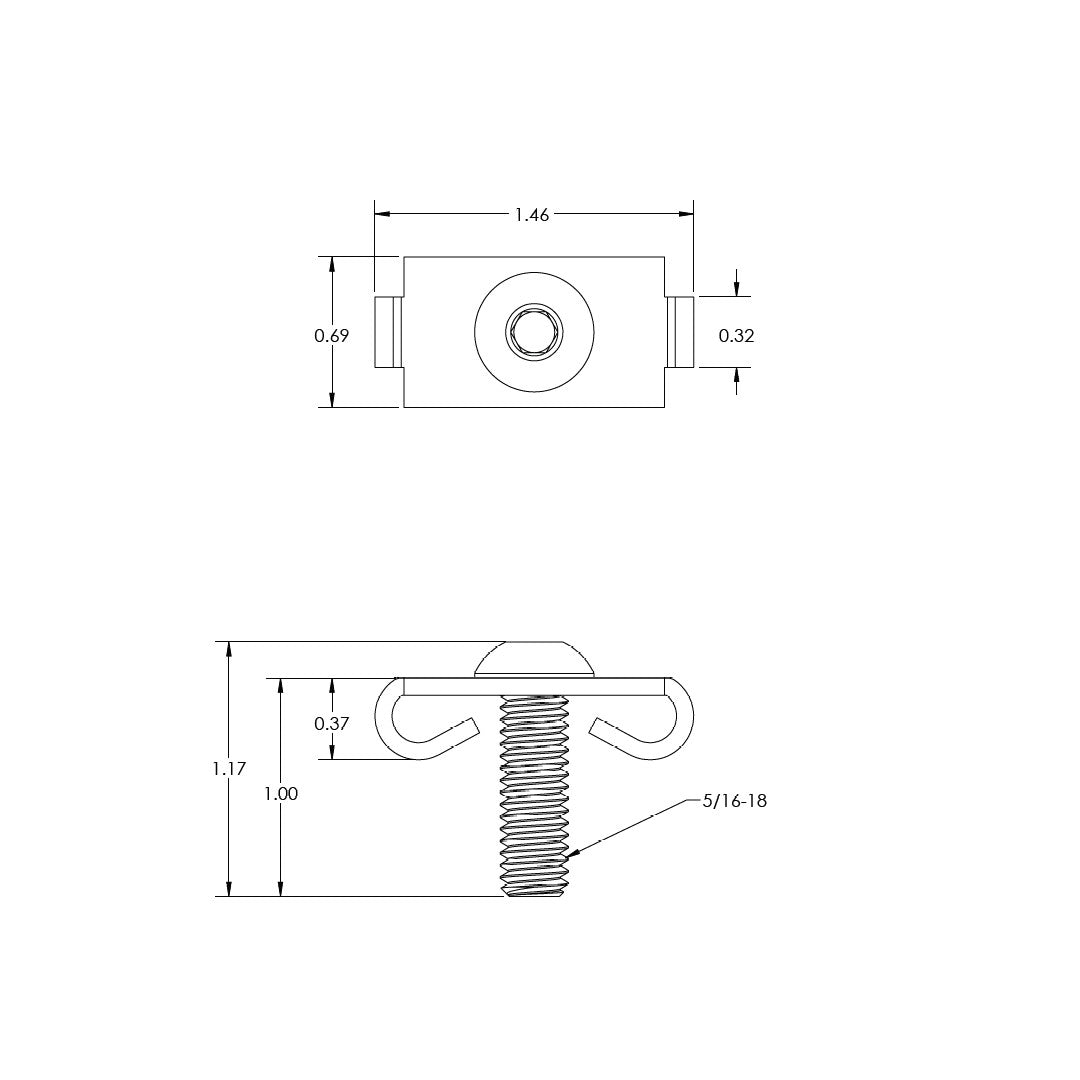

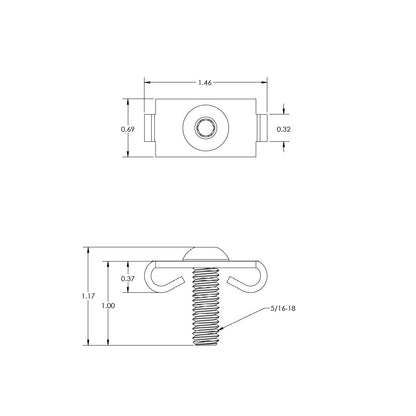

Design Files:

Specification:
Compatible Extrusion:
  • RevDelta; 15 Series
  • 80/20; 15 Series
Surface Finish:
  • None
Material:
  • Stainless Steel
Thread:
  • 5/16"-18
Weight: 23 g (0.05 lb)
